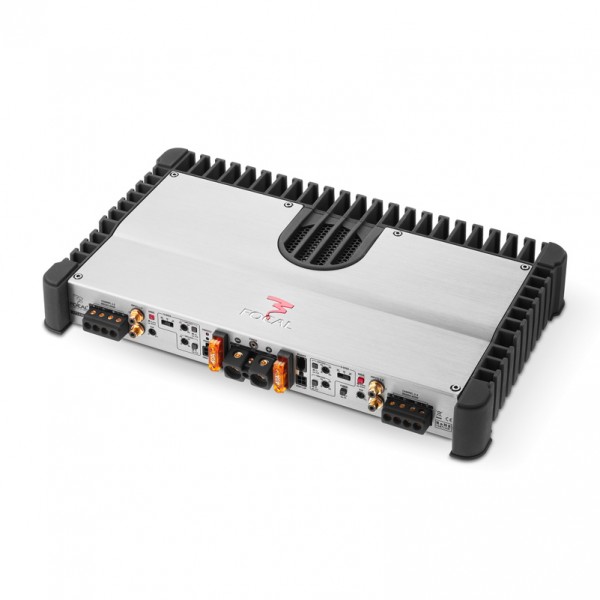

FPS 4160 Details
High-end Class AB amplifier.
Direct mode available for quality active amplification. Thermo-controlled ventilation.

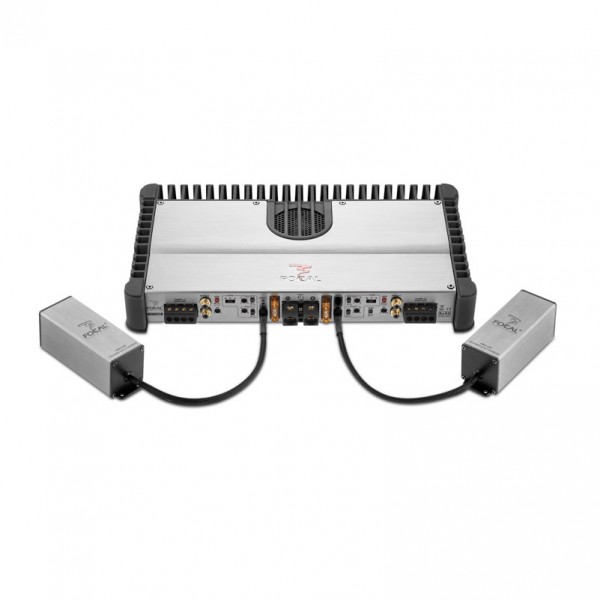

Compatible with High-Cap.
Advantages:
- Symmetrical design: Audiophile Quality
- Progressive controlled cooling system: Regulates the amplifier temperature
- Insulated Gate Bipolar Transistor (IGBT): Audiophile and powerful
- Direct mode: The audio signal is directly amplified
- High-pass, low-pass and band-pass crossovers: Adjustable from 50Hz to 5kHz
- Pseudo-balanced input: No parasite
- Controlled cooling system: Air flow control
- Safety terminal: Cable and sheath complete integration
Specifications:
CEA 2006 (4 Ohms, ≤1% THD N, 14.4 Volts) | 4x120W |
| Nominal Power | 4x160W into2 Ohms with 0.07% THD |
| Nominal Power (bridged mode) | 2x360W into 4 Ohms with 0.08% THD |
| Adjustable high-pass crossover from | 50Hz to 5kHz |
| Adjustable low-pass crossover from | 50Hz to 5kHz |
| Adjustable band-pass crossover from | 50Hz to 5kHz |
| Direct Mode: Protections | short-circuit, direct current, thermal overload,polarity reversal |
