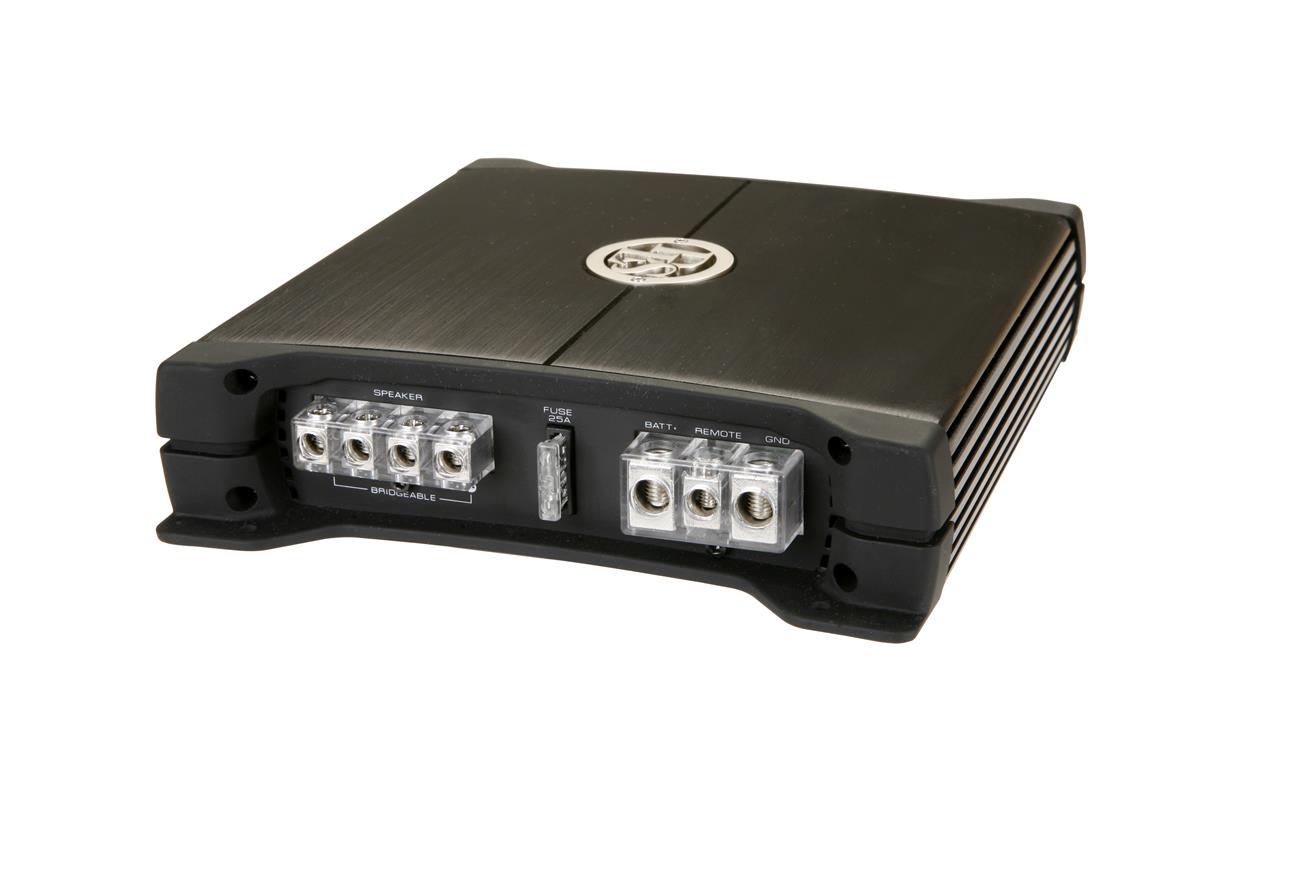

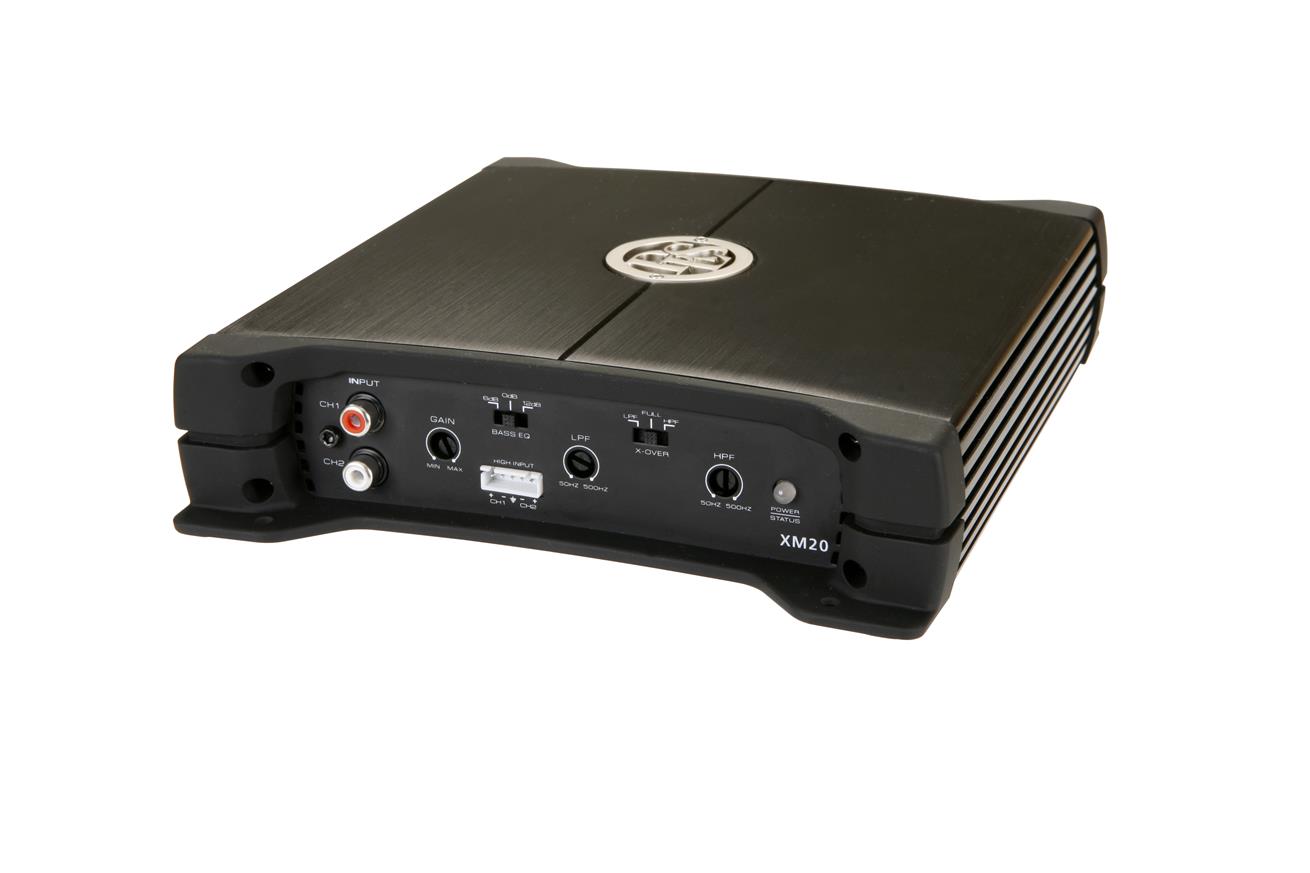

XM20 is a small and powerful amplifier with a peak power output of 2 x 100 Watts. In 4 ohm mono bridge-connection, it puts out all of 170 Watts.
- Built-in low-pass filter for subwoofers, variable between 50 and 500 Hz.
- The high-pass filter is also variable between 50 and 500Hz.
- Built-in protection circuits shut down the amplifier in the event of overloads.
- High level input with AUTO-start function makes it easierto connect to factory installed head units.
- Bass EQ function in two steps, 6 dB ot 12 dB
Specifications:
Number of channels | 2 |
Amplifier class | AB |
Peak power | 2 x 100 Watt |
Mono bridge mode 4 ohm | 170 Watt |
Output power in 2 ohm | 2 x 80 Watt |
Output power in 4 ohm | 2 x 56 Watt vid 1% THD, 2 x 50 Watt vid 0.05%THD |
Damping factor | > 80 |
S/N ratio, A-weighted | > 90 dB |
Frequency range | 20 Hz - 30 kHz |
Input impedance | 22Kohm |
Input impedance, High level | 220 ohm |
High pass filter | 50 -500 Hz |
Low pass filter | 50 -500 Hz |
Grand bass filter | Bass EQ 6dB / 12dB @ 50 Hz |
Low level output | No |
High level input with auto start | Yes |
Power consumption (idle) | 0.4 A |
Power consumption (max) | 25 A |
Rec. power cable | 16 sq mm ( 5 AWG ) |
Fuses | 1 x 25 A |
Dimension (W x D x H) | 189 x 210 x 46 mm (7.44" x 8.26" x 1.81") |
Weight | 2 kg |
