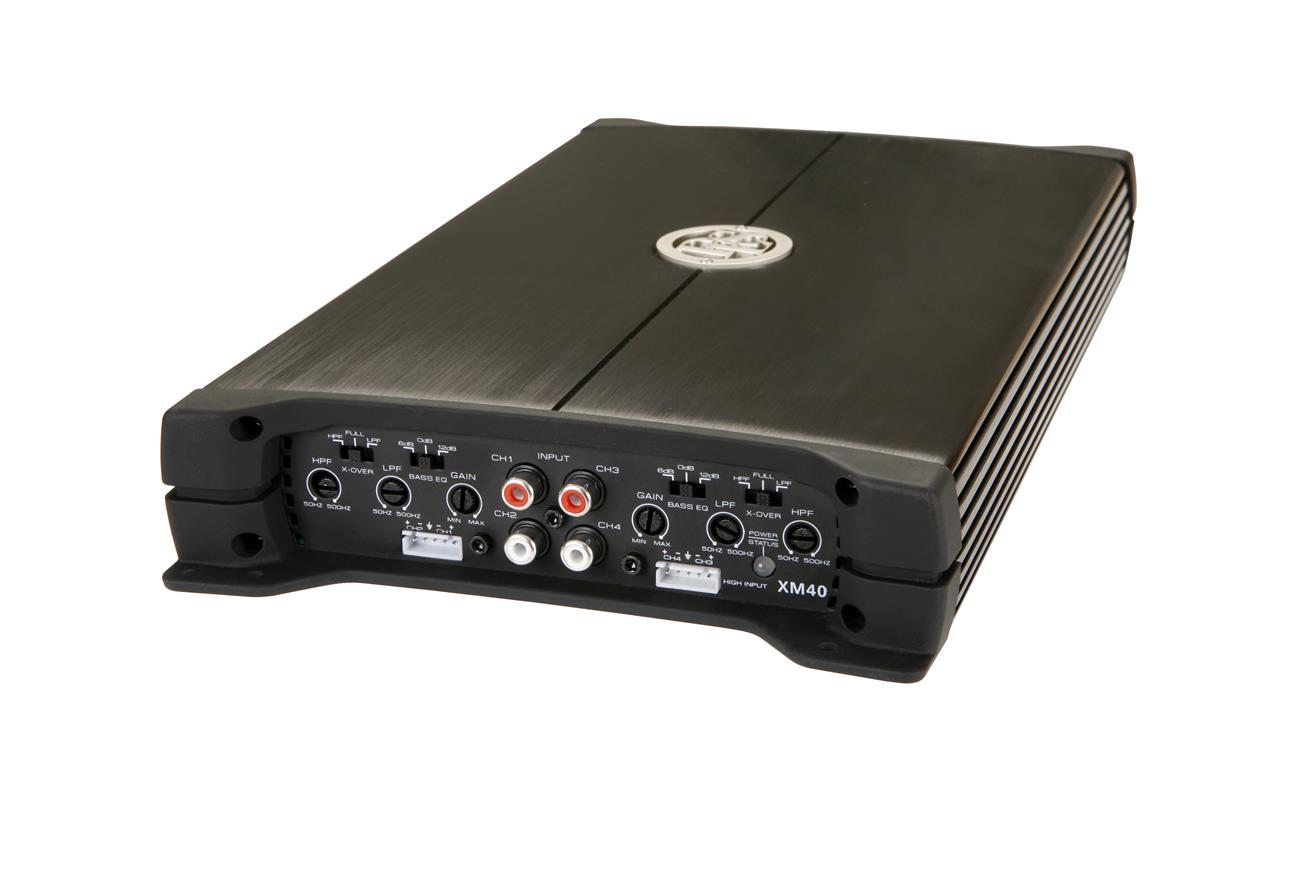

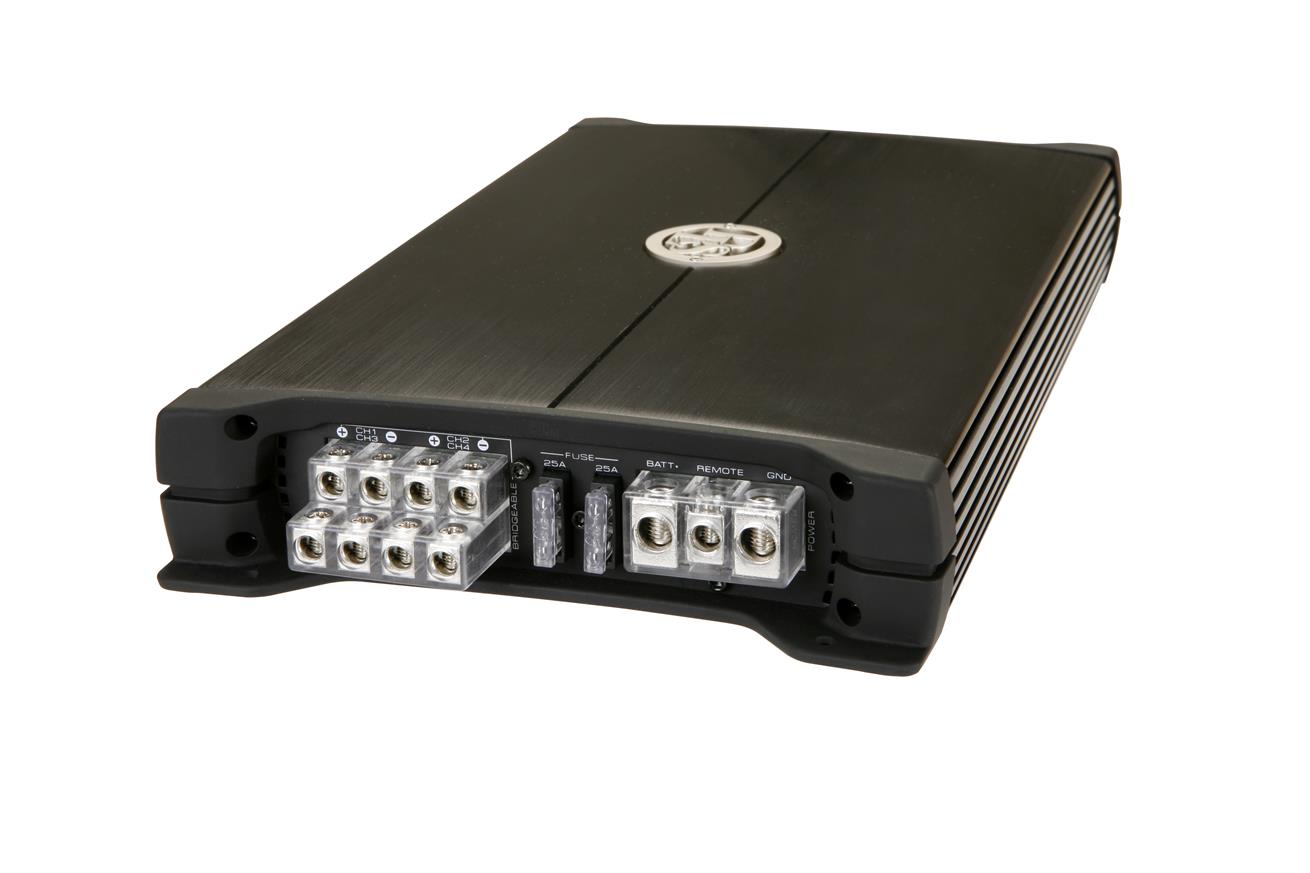

XM40 is a small and powerful amplifier with power output of4 x 100 Watts peak power, and in monobridge-connection, it puts out all of 2 x 170 Watts.
- Built-in/switchable low pass and high pass filters.
- Bass EQ @ 50 Hz: 6dB / 12 dB.
- Built-in protection circuits shut down the amplifier inthe event of overloads.
- Hi level input with Auto start
Use it for a front system and a subwoofer.
Specifications:
Number of channels | 4 |
Amplifier class | AB |
Peak power | 4 x 100 Watt |
Output power in 2 ohm | 4 x 80 Watt |
Output power in 4 ohm | 4 x 56 Watt vid 1% THD, 4 x 50 Watt vid 0.05%THD |
Mono bridge mode 4 ohm | 2 x 170 Watt |
Damping factor | > 80 |
S/N ratio, A-weighted | > 90 dB |
Frequency range | 20 Hz - 30 kHz |
Input impedance | 22kohm |
Input impedance, High level | 220 ohm |
Input sensitivity | 0.25 - 5 Volt |
High pass filter | 50 -500 Hz ( Ch, 1, 2, 3, 4) |
Low pass filter | 50 -500 Hz ( Ch, 1, 2, 3, 4) |
Grand bass filter | Bass EQ @ 50 Hz: 6dB/ 12dB |
Low level output | No |
Remote bass level control | No |
Remote phase shift control | No |
High level input with auto start | Yes |
Power consumption (idle) | 0.5 A |
Power consumption (max) | 50 A |
Rec. power cable | 16 sq mm ( 5 AWG ) |
Fuses | 2 x 25 A |
Dimension (W x D x H) | 189 x 322 x 46 mm (7.44" x 12.67" x 1.81") |
Weight | 3 kg |
