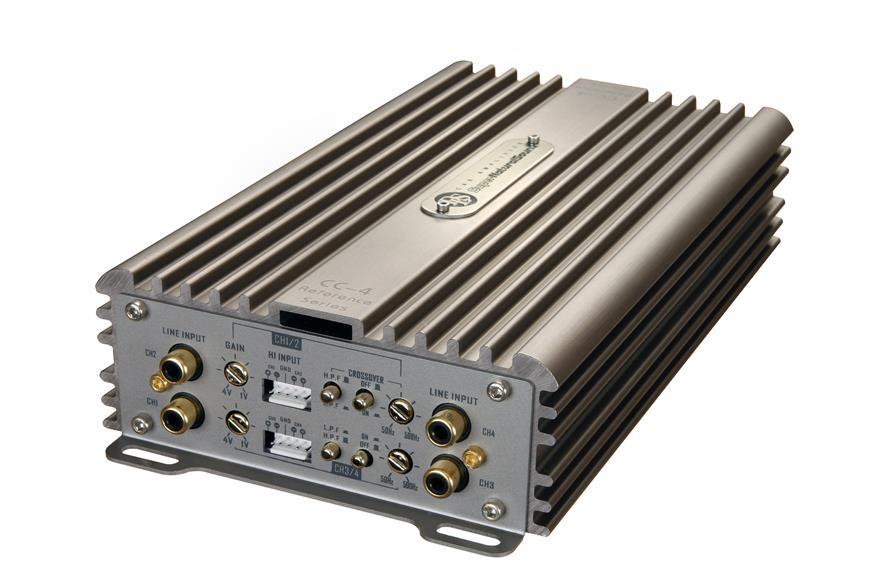

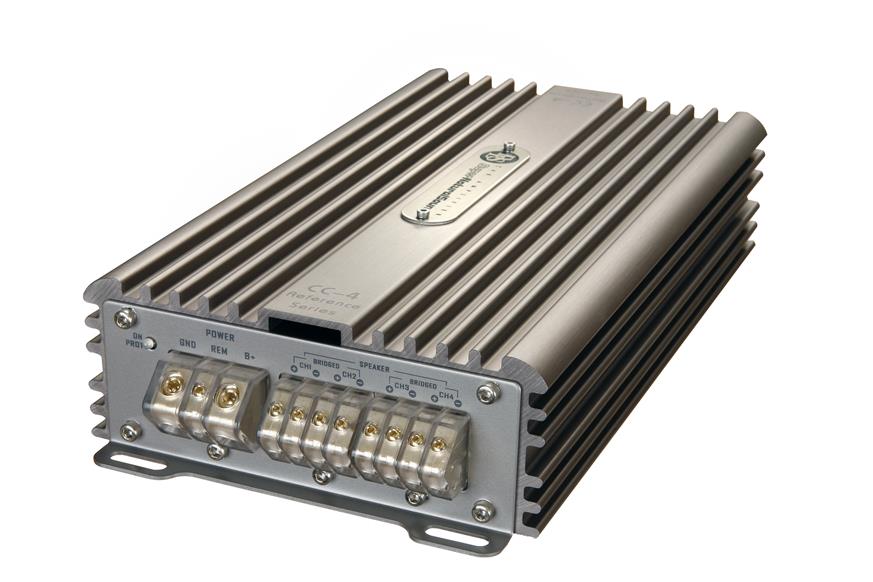

CC-4 is a small and powerful amplifier with a RMS power output of 4 x 70 Watts RMS, and in mono bridge-connection, it puts out all of 2 x 140 Watts. A good sounding amplifier for both amateurs and professionells.
- Built-in / switchabl low-pass and high pass filter.
- Damping factor > 250
- Signal to noise ratio, A-weighted: 110 dB
- THD at 5W, 1 kHz. < 0.02%
- The high-pass filter is also variable between 50 and 500Hz.
- Built-in protection circuits shut down the amplifier inthe event of overloads.
- Hi - level input with Auto start
Use it for a front system and a subwoofer.
Number of channels | 4 |
Amplifier class | AB |
Mono bridge mode 4 ohm | 2 x 140 Watt |
Output power in 2 ohm | 4 x 70 Watt |
Output power in 4 ohm | 4 x 50 Watt |
Damping factor | > 250 |
S/N ratio, A-weighted | > 110 dB |
Frequency range | 10 Hz - 50 kHz |
Input sensitivity | 1 - 4 Volt |
Input impedance | 6kohm |
Input impedance, High level | 45ohm |
High level input with auto start | Yes |
Remote bass level control | No |
Low level output | No |
Remote phase shift control | No |
Filters channel A & B | HP 50 -500 Hz, LP 50 -500 Hz |
Filters channel C & D | HP 50 -500 Hz, LP 50 -500 Hz |
Power consumption (idle) | 0.5 A |
Power consumption (max) | 40 A |
Rec. power cable | 16 sq mm ( 5 AWG ) |
Fuses | 2 x 20 A |
Dimension (W x D x H) | 129 x 250 x 51 mm (5.07" x 9.85" x 2") |
Weight | 1.8 kg |
